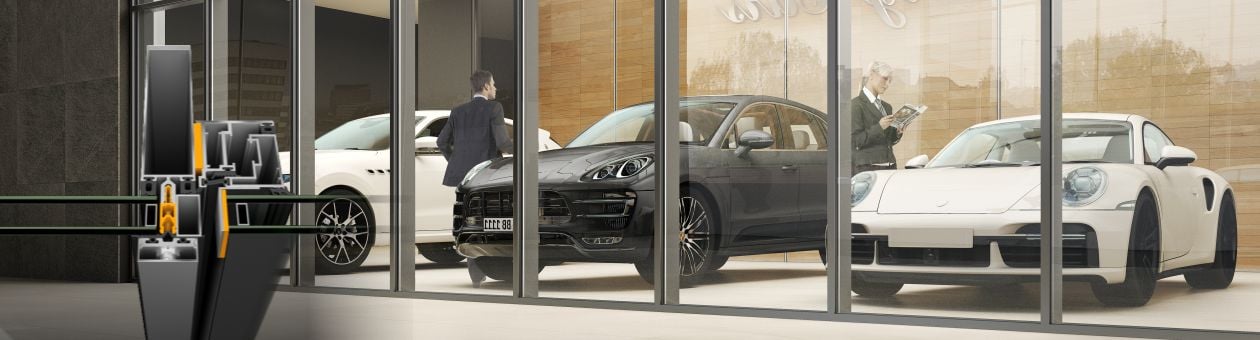

SMARTIA M35 a curtain wall system for maximum transparency
Description
SMARTIA M35 is a “value for money” curtain wall system which ideally combines aestetics and high performances.
Its minimal design offering reduced sightline, compared to other typicall Curtain Wall Systems, at 35mm, renders SMARTIA M35 ideal for Transparent Architecture.
Advantages
- Ease of fabrication
- Reduced fabrication cost concerning profiles and accessories.
- Range of mullions and transom able to cover every static demand.
- Maximum functionality
- Application of various hinged typologies: projected, parallel projected and tilt and turn windows.
- Differentiation compared to competition.
- Application of sliding typologies.
- Effective water evacuation
Certificates
Generic
AESTHETICS
Standard
Technical Characteristics
EXTERIOR VISIBLE WIDTH
35 mm
MULLION DEPTH
50 up to 200 mm
TRANSOM DEPTH
50 up to 200mm
TYPE OF HOLDING GLAZING
Pressure plate
MULLION MAX INERTIA
540 cm4
TRANSOMS MAX INERTIA
451 cm4
Performance
WATER TIGHTNESS
RE 1050
AIR PERMEABILITY
AE
WIND LOAD RESISTANCE
Design Load ± 1,6KN/m², Safety Load ± 2,4KN/m²
Characteristics
TYPES OF TYPOLOGY
Fixed, Projected, Parallel Projected, Tilt and turn
MAXIMUM GLAZING THICKNESS
4mm up to 54mm
from 1,2 up to 2,2 W/m²K
TYPOLOGIES
All available typologies
Fixed window
Projected outward window
Parallel projected outward window
Tilt and turn window
Media Gallery
Sections
